Conveyor System
|
 |

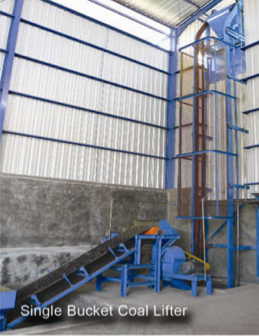

| There are several methods of fuel handling and conveying system that we use. First is the simple bucket lifter. It consists of a 300 - 400 Kg single bucket per lift, driven by a motorized cable winch with gearbox. It also consists of a vertical rail and guide. It is the most practical conveying system though looks quite primitive. But the most important in any operation is its sturdy design, simple of operation, less maintenance and practically trouble-free. Its significance is very noticeable on rainy season where coals are generally wet and sticky. |
RUBBER BOX CONVEYOR:
It is designed for bigger boiler capacities (22 - 30 tph) and could be installed up to 70 degrees inclination with low speed movement. It is made from vulcanized rubber with flexible sidings. It continuously rotates with evenly distributed load and driven by a motorized gearbox. |
 |
|
Control
|

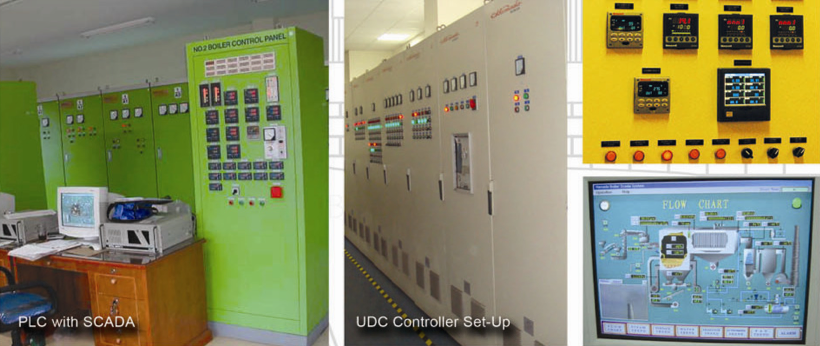

| The control system consists of two main components: the Main Control Panel and the Power Box. The main control panel consists of UDC controllers, inverters, gauges, switches etc. While the Power Box are mainly contractors, circuit breakers, overload relays, voltage and ampere meters, etc. It controls and manages the operation of the boiler on an automatic or semi-automatic operation. Standard supply is the individual UDC controller set-up (bottom center). It individually controls the functions of ID fan, FD fan, secondary FD fan, feed water pumps, etc. We also provide our control system with PLC with SCADA (bottom right). |
 |
| Fuel |
Only Fluidized Bed Can Mix Vatious Biomas Fuel |
 |
| Coal | Corn Cob | Coconut Shell | Rice Husk | Bamboo | Palm Kernel | Wood Chip | Wood Bark | RDF/RPF | Pulper Reject (Cleaner Reject) | Rag Rope | Screen Reject | Sludge Cake | City Waste | Water Treatment Waste |
|
|
