HAMADA BOILER WEB CATALOGUE
TVTB 1
page 64

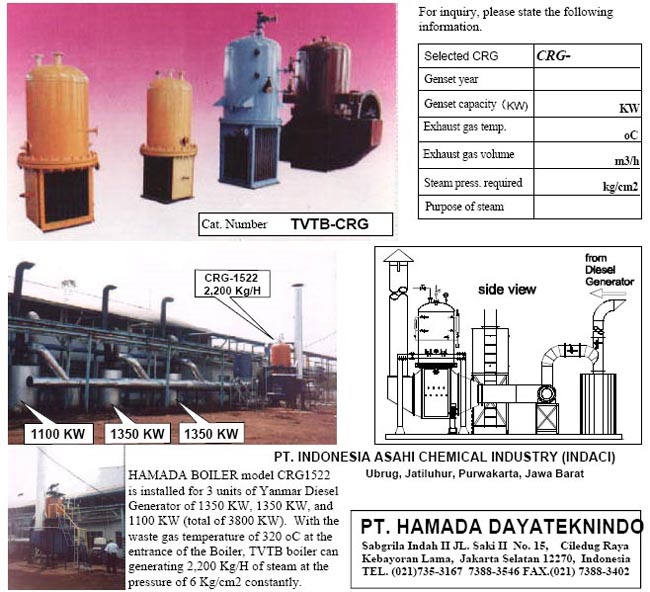

Heat Pipe Waste Heat Recovery Boiler
For waste gas of Diesel Generator
MODEL
Weight
Ton
Exhaust
Gas Temp.
( o C )
Dimension
L x H x W
( mtr. )
Heating
Surface
( M2 )
No. of
Thermal
Tubes
Steam
(Kg/cm2)
AIR
Resistance
( mmH2O )
GENSET
Diesel Generation
Capacity KW
TVTB-BOILER
EVAPORATION
Kg/Hour
Net
Ton
CRG - 152
0.6
0.9
320-380
1.47 x 2.1 x 1.08
18.6
56
6
20
330
150-220
CRG - 203
1.0
1.4
320-380
1.8 x 2.55 x 1.29
36
77
6
20
450
250- 300
CRG - 345
1.7
2.2
320-380
1.97 x 2.63 x 1.31
52.8
115
6
30
675
400- 450
CRG - 406
2.0
2.4
320-380
2.2 x 2.83 x 1.31
66
115
6
30
900
520- 600
CRG - 575
2.2
2.8
320-380
2.3 x 3.2 x 1.52
128
115
6
40
1125
680- 750
CRG - 609
2.6
3.4
320-380
2.53 x 3.0 x 1.52
165
115
6
40
1350
800- 900
CRG - 710
2.8
3.4
320-380
2.5 x 3.0 x 1.4
170
138
6
50
1500
900-1050
CRG - 812
3.2
4.0
320-380
3.02 x 4.05 x 1.6
180
138
6
50
1800
1100-1200
CRG - 1015
4.5
5.3
320-380
3.2 x 4.25 x 1.8
200
138
6
50
2250
1400-1500
CRG - 1522
6.2
7.4
320-380
3.6 x 4.5 x 1.9
220
160
6
60
3300
2100- 2200
CRG - 2030
7.75
9.35
320-380
3.9 x 4.7 x 2.0
240
160
6
60
4500
2900- 3000
CRG - 2537
9.25
11.3
320-380
4.2 x 4.8 x 2.2
260
160
6
60
5600
3600- 3750
